10-330KV LB SERIES DEAD-TANK OIL IMMERSED CT

New Products / New Technology

The current transformer is outdoor, single phase and oil immersed dead-tank type, which is used for metering and relay protection of 10~330kV,50 or 60Hz system. The product is adopted to high dielectric strength oil-filled designs using oil paper insulation, the primary insulation is wound from high voltage cable paper. This ensures conservative reliable performance for decades of service in demanding global outdoor environments.

33-220KV LVB1 SERIES LIVE-TANK OIL IMMERSED CT

New Products / New Technology

Oil immersed live tank current transformer, this series are inverted fully sealed structure, consist of primary winding, body, bellows, upper and lower oil tanks, porcelain bushing, base and terminal box, etc. The body adopts oil-paper capacitive divider insulation, with high insulation utilization and uniform electric field distribution. Secondary winding is placed in the aluminum alloy shield, preventing high voltage attack during high energy discharge and protecting secondary instruments and relays. Oil tanks are made of aluminum alloy with high strength, good sealing and stainless. The stainless steel expander at the top of the product can adjust the volume of oil based on changes of temperature.

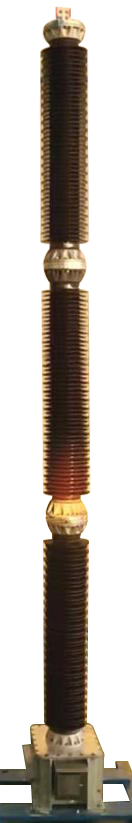

33-330KV TYD SERIES CAPACITOR VOLTAGE TRANSFORMER

New Products / New Technology

户外单相电容式电压互感器，在33~330kV,50或60Hz电力系统作电压、电能测量和继电保护用。产品由电容分压器和电磁单元两部分组成，电容分压器可兼做耦合电容器用于电力线路载波通信。本产品是充油和密封的，不需要滤油或换油。
