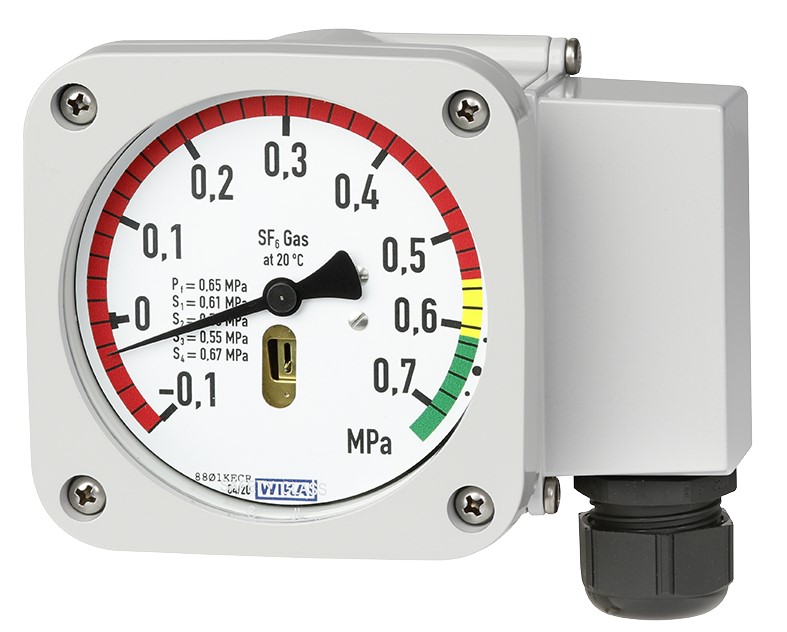

GDM-RC-100 Gas Density Meter with Reference Gas Chamber

Applications: 1. High-voltage switchgear 2. Density monitoring of SF6 or alternative insulating gases in sealed gas compartments 3. Customizable monitoring parameters with electrical contact signal outputs Features: 1. Employs reference chamber technology, offering up to four sets of microswitches for switchable contact outputs 2. The product's dial provides on-site display of both density and vacuum levels 3. Suitable for monitoring SF6 as well as a variety of alternative insulating gases 4. Enhances equipment safety through self‑diagnostic functionality 5. Utilizes a welded reference chamber for long-term stability

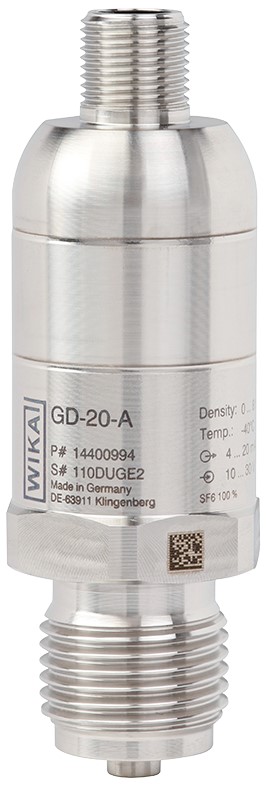

GD-20 Gas Density Sensor

Applications: 1. Continuous monitoring of gas‑state parameters within enclosed gas chambers 2. Suitable for indoor and outdoor SF6‑gas‑insulated equipment 3. Measurement of alternative gas densities in electrical equipment or laboratory settings Features: 1. Employs high‑precision sensor technology 2. Outputs Modbus® RTU digital signals or 4–20 mA analog signals 3. Rated IP67 for ingress protection 4. Offers long‑term stability and excellent electromagnetic compatibility 5. Compact design

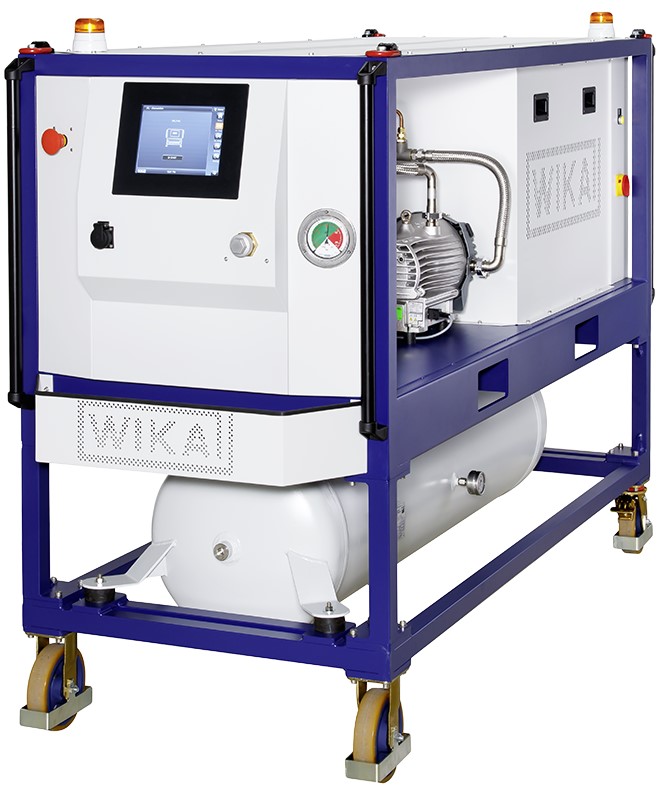

GPU-2000 Gas Treatment Unit

The Wika GPU‑2000 gas‑handling unit ensures the safe and intuitive execution of all operations, from initial gas charging to final gas processing, effectively eliminating risks associated with improper use, leakage, and overcharging of SF6 gas.
