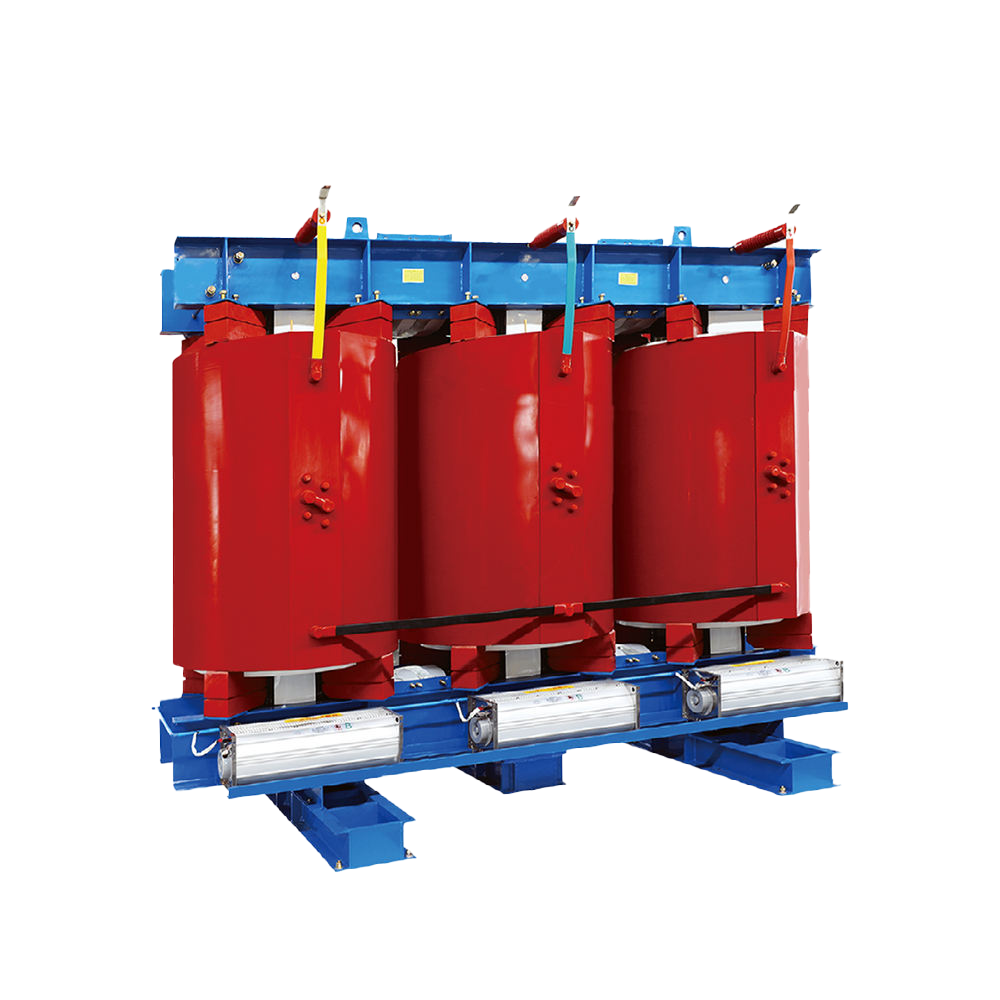

DERUI ELECTRIC 10-35KV DRY-TYPE TRANSFORMER‌

New Products / New Technology

Derui Electric 10-35kV dry-type transformer features coils fully encapsulated in epoxy resin, delivering outstanding performance in flame retardancy, fire safety, explosion protection, maintenance-free operation, zero pollution and compact footprint. It can be directly installed at the load center.
Backed by scientifically optimized design and casting process, this product achieves lower partial discharge, reduced noise level and superior heat dissipation capacity. Under forced air cooling condition, it can operate continuously at 125% of its rated load. Equipped with an intelligent temperature controller, it integrates functions including fault alarm, over-temperature alarm, over-temperature tripping and "black box" data recording. It can also be connected to computers via RS485 serial interface to realize centralized monitoring and control.

DERUI ELECTRIC - DSR6-40.5KV (C-GIS) SF6 GAS-INSULATED METAL-ENCLOSED SWITCHGEAR

New Products / New Technology

DSR6-12/24/40.5 series of SF6 Gas insulated Metal Enclosed switchgear (C-GlS) is independently developed by our company with sulphur hexafluoridegas as the insulating medium and can be applied in primary or secondary power distribution at a same time. lt is a new-generation medium-voltage wholeset switchgear with vacuum arc extinguishing technology, ApG solid sealed technology, gas insulation technology and interface insulation technology. Theproduct has passed the type test verification and new produc technology appraisal by Chinas national authoritative testing institution. The product canbe widely used in various important power distribution and substation systems of chinas national economy, such as power distribution and substatiornetwork, urban power supply network,large industrial and mining enterprises, petrochemical, metallurgy, urban railtransit and so on.the product has a modular desien and can be combined according to various design schemes, The product has a sealed pressure svstem and all highIt runs reliably,is compact with little spacevoltage live parts of its main circuit are sealed in the stainless steel gas tank without influence from environments.occupied and free from maintenance.

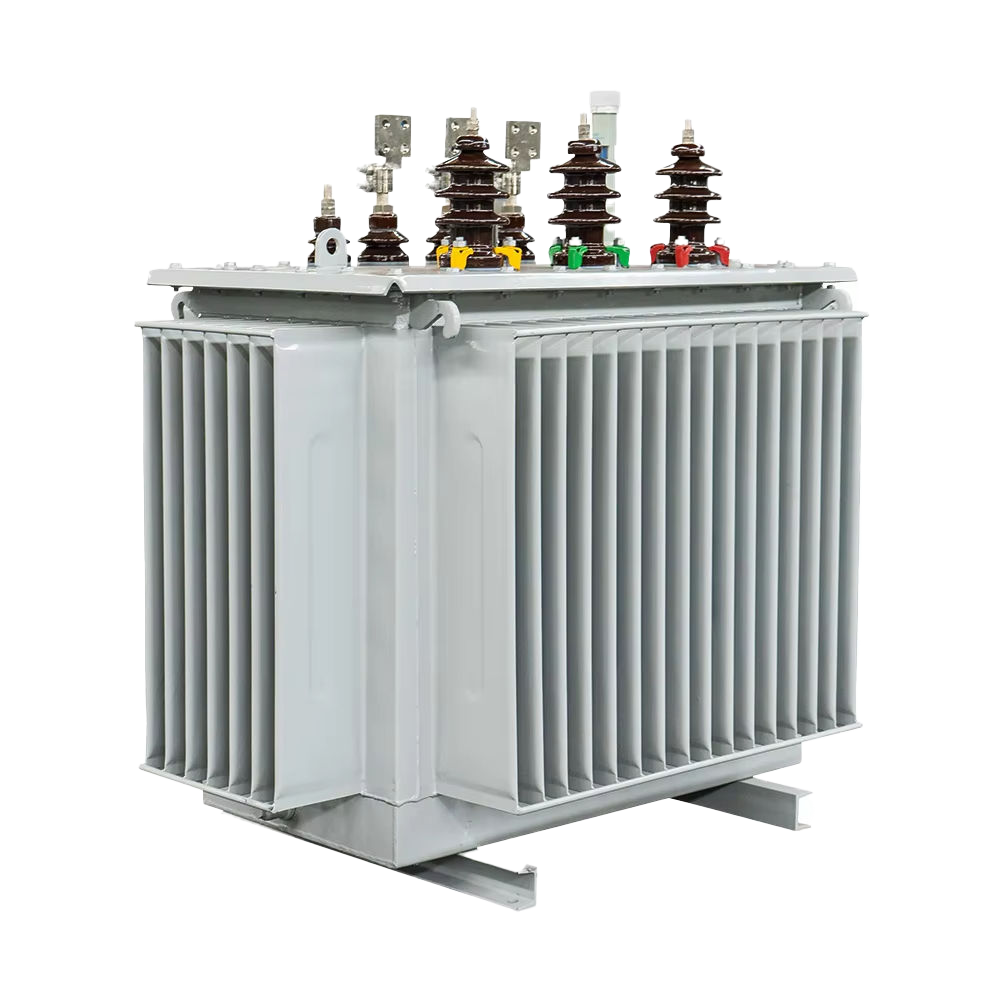

DERUI ELECTRIC 10-35KV OIL-IMMERSED TRANSFORMER

New Products / New Technology

The 10-35kV oil-immersed transformer manufactured by Derui Electric adopts a fully oil-filled, sealed corrugated oil tank. The tank shell adapts to oil expansion through its own elasticity while meeting heat dissipation requirements.
The transformer body features a new insulation structure that enhances short-circuit resistance. Its core is made of high-quality cold-rolled silicon steel sheets. Both the high-voltage and low-voltage windings use oxygen-free copper wires and adopt a multi-layer cylindrical structure. All fasteners are treated with special anti-loosening processes.
This product boasts high efficiency and low loss, which can significantly reduce power consumption and operating costs, delivering remarkable social benefits. It has been widely applied in power plants, substations, industrial and mining enterprises, ports and airports.
