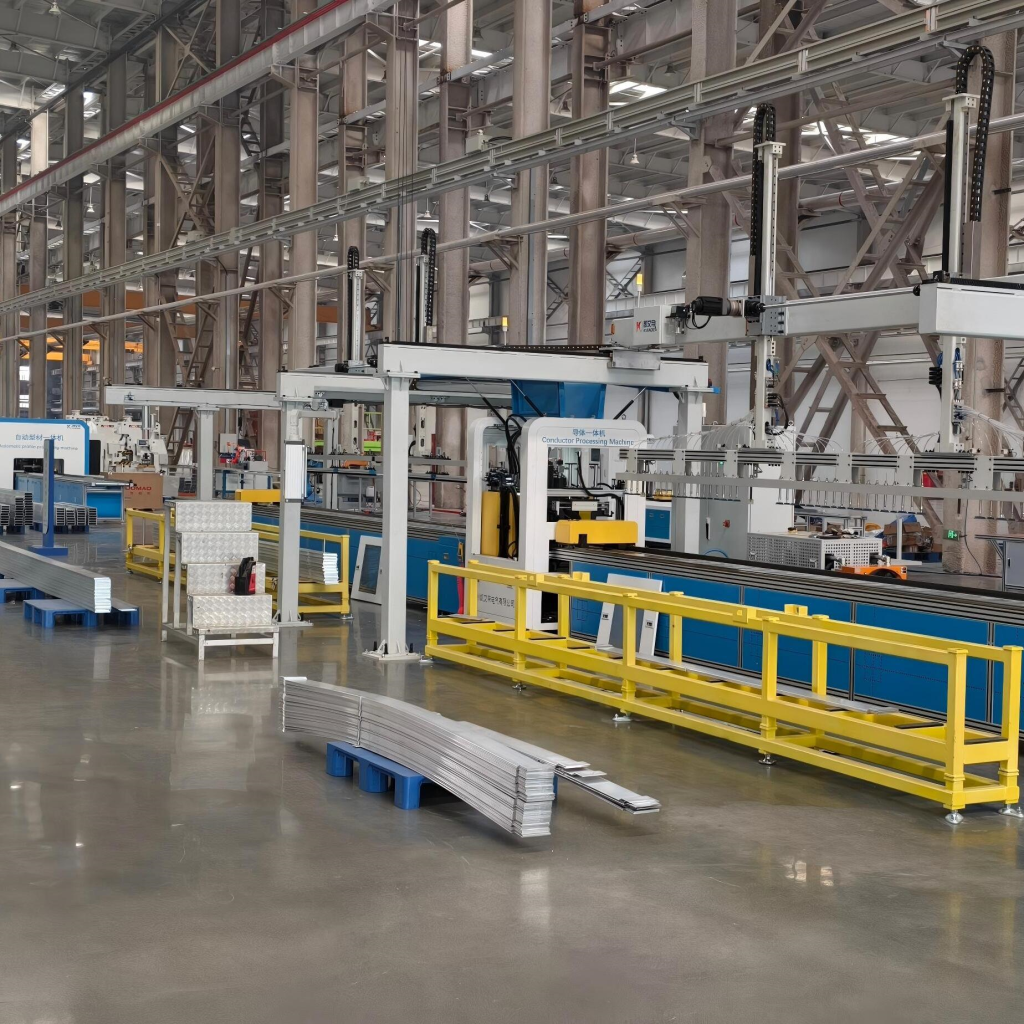

MULTIFUNCTION BUSBAR PROCESSING MACHINE

KIANDE Multifunction Busbar Processing Machine for automatic busbar production. Operator inputs values such as length, width, piler position, quantity and so on to initiate automatic feeding, CNC punching, shearing, and hydraulic bending. The whole automated process helps you eliminate manual errors and minimize cost.Positioning accuracy to ±0.2mm, delivering consistent bending results across every batch Supports copper and aluminum conductors, 12006000mm length, 140300mm width, 26mm thickness, all driven by your CAD data Optional barcode and QR code marking for full traceability of your production.Customizable to your specific requirements

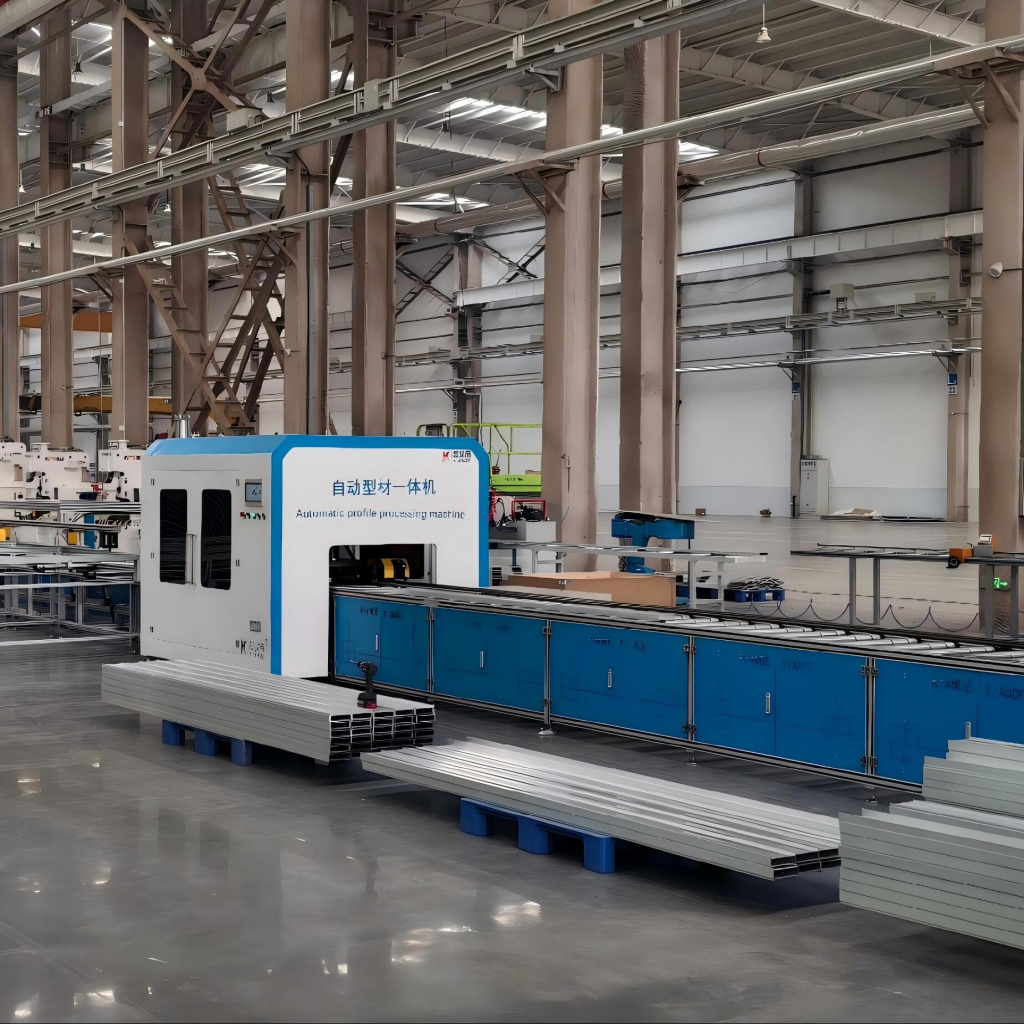

BUSBAR PROFILE PROCESSING MACHINE

KIANDE Busbar Profile Processing Machine specializes in automatic busbar housing processing. You only need to input values such as length, width, height, hole position, and quantity to initiate automatic cutting, punching, and drilling. One machine covers multiple processes, minimizing material waste and labor costs.Vertical punching (300KN) and horizontal punching (30KN) in one machine Positioning accuracy to ±0.2mm for consistent output across every batch Supports aluminum housing, 12003000mm length, 45220mm width, 2.55mm thickness Cover plate and side panel height are fully customizable according to your needs Barcode and QR code marking for production traceability are available

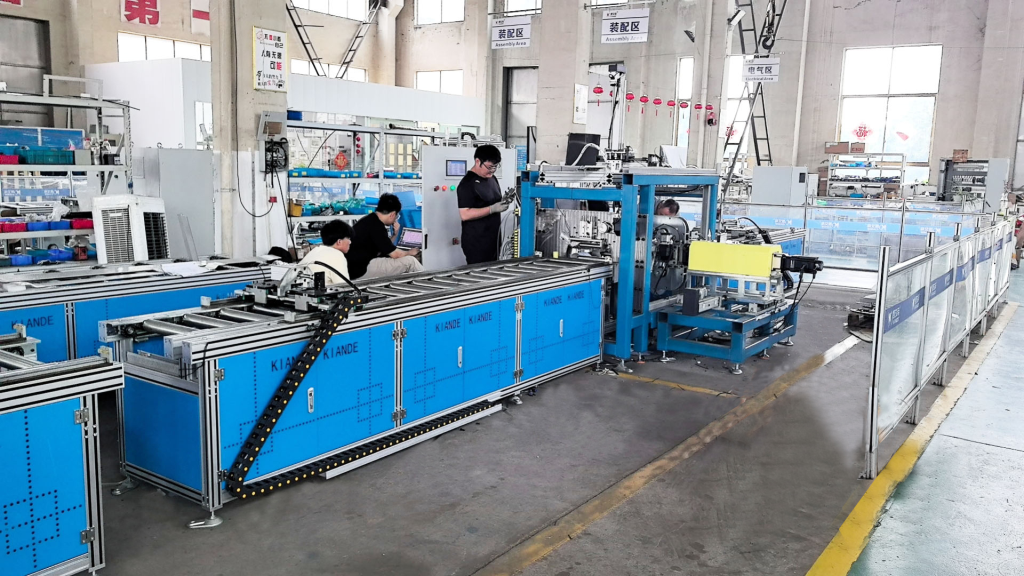

INSULATED FILM BUSBAR COATING MACHINE

The Insulated Film Busbar Coating Machine launched by Suzhou KIANDE Electrical Co., Ltd. is specifically designed for the surface insulation coating process of busbars, busbar ducts, and busbar racks. This machine can handle busbars with a width ranging from 10mm to 250mm and a maximum length of 6 meters. It basically covers all the common customized size requirements in power distribution projects. Different from the traditional polyester heat shrink tube coating method, our Automatic Busbar Insulation Machine uses high-speed winding of polyester film to form the insulation layer, and you can easily adjust the coverage of the film according to actual production needs.
