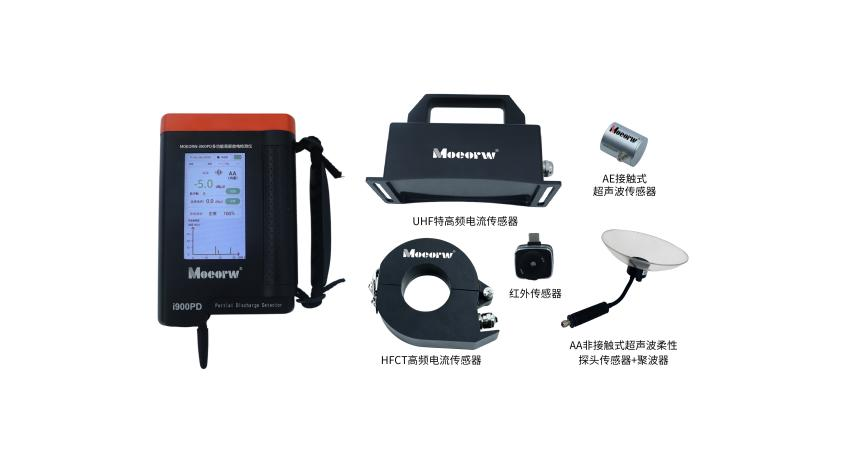

MOEORW-I900PD MULTI-FUNCTIONAL PARTIAL DISCHARGE DETECTOR

MOEORW-i900PD Multi-functional Partial Discharge Detector is an on-line live tester based on intelligent data analysis, which easily detects partial discharge of switchgears, GIS, transformers, cables and other electrical equipment. Adopting multi-modal combination, i900PD integrates partial discharge detection, infrared temperature measurement, acoustic imaging, intelligent identification and spectrum analysis. It captures fault signals from multiple dimensions to predict hidden risks such as insulation aging, partial discharge and connector overheating in advance and support condition-based maintenance. As a non-intrusive tester, it requires no power cut or physical contact to simplify maintenance. Suitable for fault prediction and condition maintenance in substations, industrial & mining power distribution, rail transit power supply, etc.

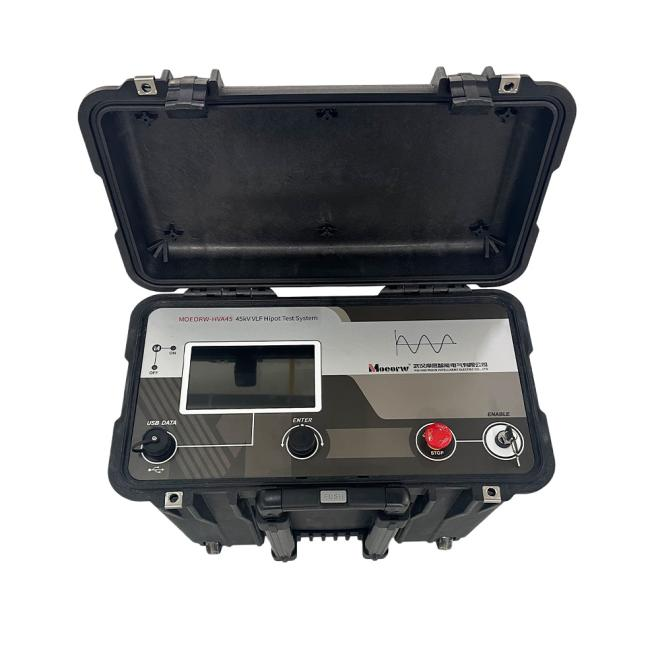

MOEORW-HVA45 INTEGRATED ULTRA-LOW FREQUENCY DIELECTRIC LOSS HIGH VOLTAGE GENERATOR

Complying with CENELEC HD 620 S1:1996 and HD 621 S1:1996 standards, the MOEORW-HVA45 integrated VLF dielectric loss high-voltage generator outputs 0.1Hz sine wave up to 24kV RMS for medium-voltage cable testing. It effectively detects insulation defects and water tree damage without impairing intact insulation. The device supports positive and negative DC voltage, as well as trapezoidal and rectangular wave withstand tests with adaptive slew rate, and measures leakage current and dielectric loss factor to evaluate insulation condition. Integrating 24/31.8kV VLF AC withstand and dielectric loss testing, it also features 10kV sheath testing, precise fault location and automatic power-off upon voltage breakdown. It supports manual and automatic frequency modulation, local data storage, USB report export and USB firmware upgrade, ensuring convenient and efficient field operation.

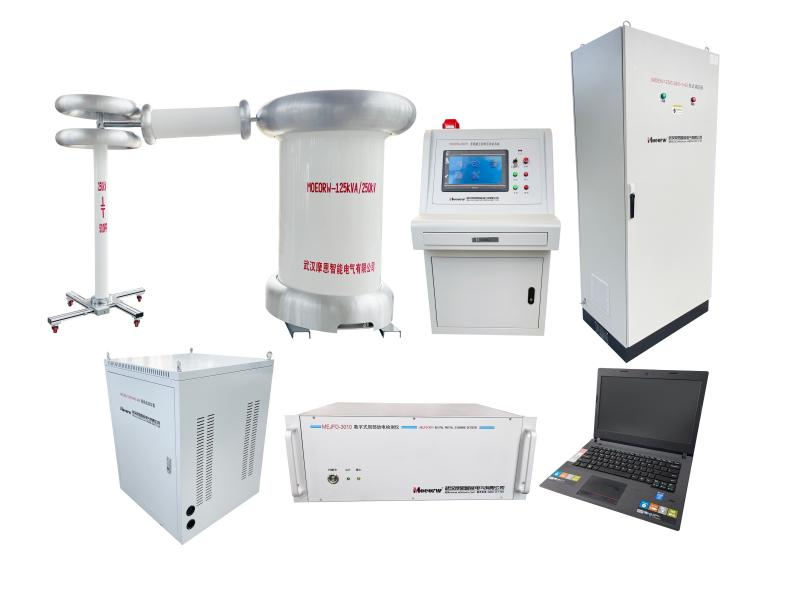

MOEORW-PG72-125KVA/250KV PARTIALISCHARGE FREE POWER FREQUENCY WITHSTAND VOLTAGE TEST SYSTEM

Complying with CENELEC HD 620 S1:1996 and HD 621 S1:1996 standards, the MOEORW-HVA45 integrated VLF dielectric loss high-voltage generator outputs 0.1Hz sine wave up to 24kV RMS for medium-voltage cable testing. It effectively detects insulation defects and water tree damage without impairing intact insulation. The device supports positive and negative DC voltage, as well as trapezoidal and rectangular wave withstand tests with adaptive slew rate, and measures leakage current and dielectric loss factor to evaluate insulation condition. Integrating 24/31.8kV VLF AC withstand and dielectric loss testing, it also features 10kV sheath testing, precise fault location and automatic power-off upon voltage breakdown. It supports manual and automatic frequency modulation, local data storage, USB report export and USB firmware upgrade, ensuring convenient and efficient field operation.
