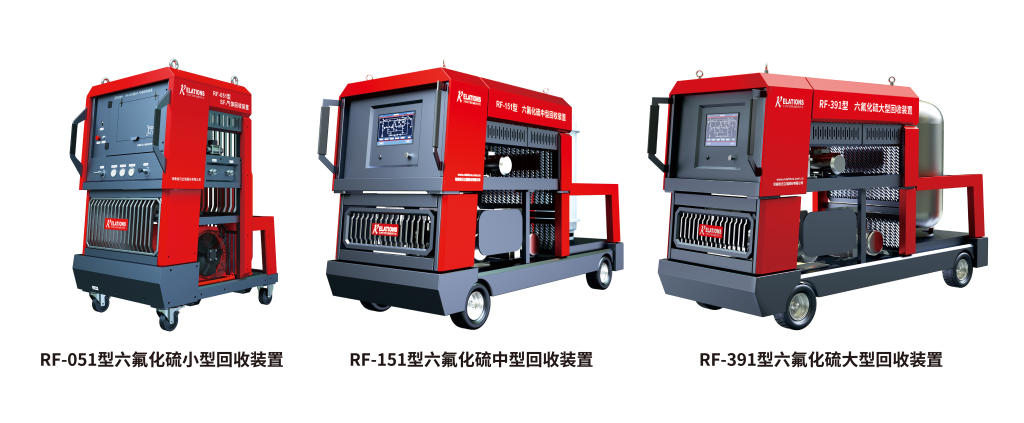

RF Series Sulfur Hexafluoride Gas Recovery Unit

New Products / New Technology

The RF series sulfur hexafluoride gas recovery unit is primarily designed to provide comprehensive, multi‑functional gas treatment services for SF6‑filled electrical equipment and switchgear compartments. The system integrates vacuum pumping, gas recovery, gas recharging, cylinder pressurization, and vaporization‑based gas delivery into a single compact unit. During vacuuming, the PLC control panel displays real‑time vacuum level changes; recovered gas can be stored in an onboard gas storage tank or transferred to an external cylinder. Gas recharging offers multiple options, including direct charging (with or without pressure regulation) and pressurized charging (gas‑phase or liquid‑phase). The equipment's design and manufacturing comply with the requirements of DLT 662.

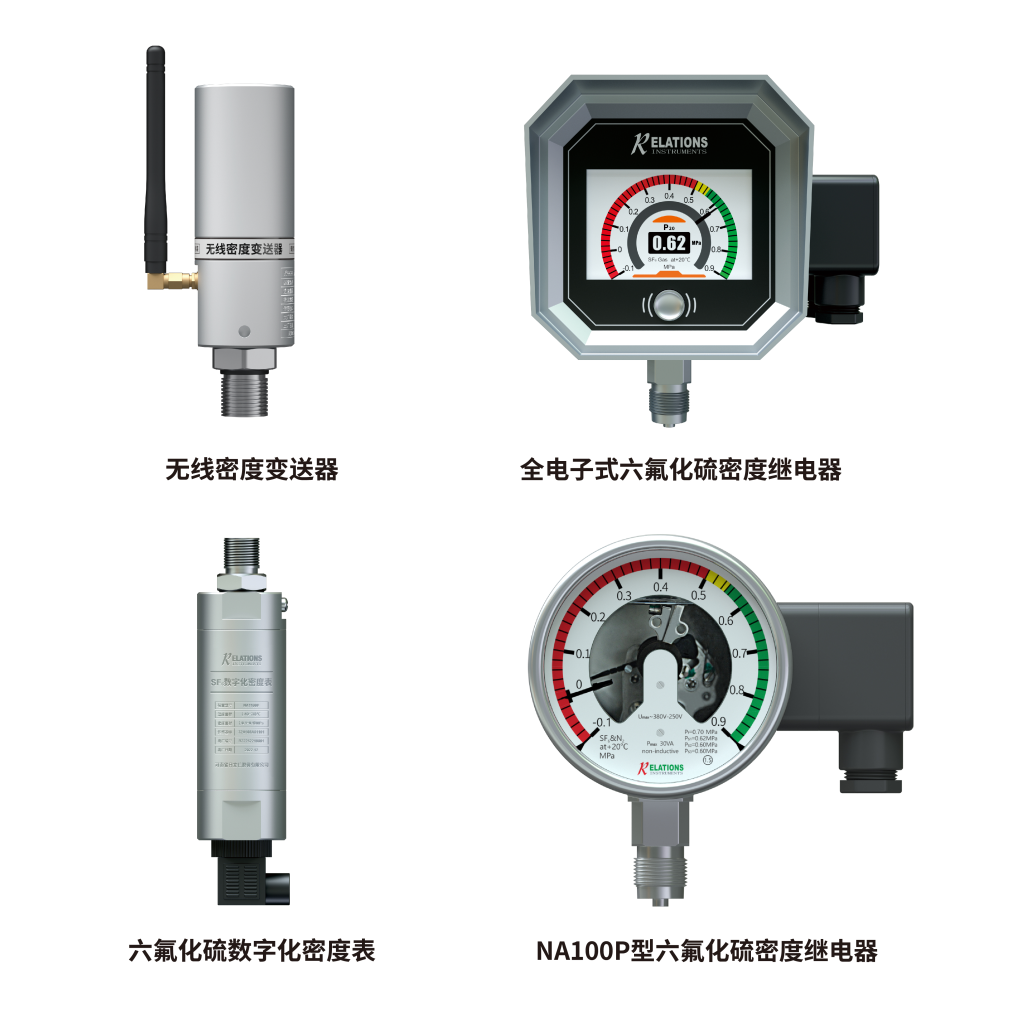

SF6 Digital Remote Transmission Density Relay

New Products / New Technology

The SF6 digital remote‑transmission density relay is designed for high‑precision monitoring of gas density, pressure, and temperature within the gas compartments of SF6 high‑voltage electrical equipment. Its sensor delivers outstanding measurement accuracy and boasts high stability, exceptional reliability, superior anti‑interference performance, and a robust protection rating. All monitoring data are transmitted in real time, with the backend system generating trend‑analysis charts and issuing timely alarms upon detecting anomalies, thereby ensuring the safe operation of sulfur hexafluoride‑filled electrical equipment and meeting the State Grid's requirements for digital transformation in smart substations.

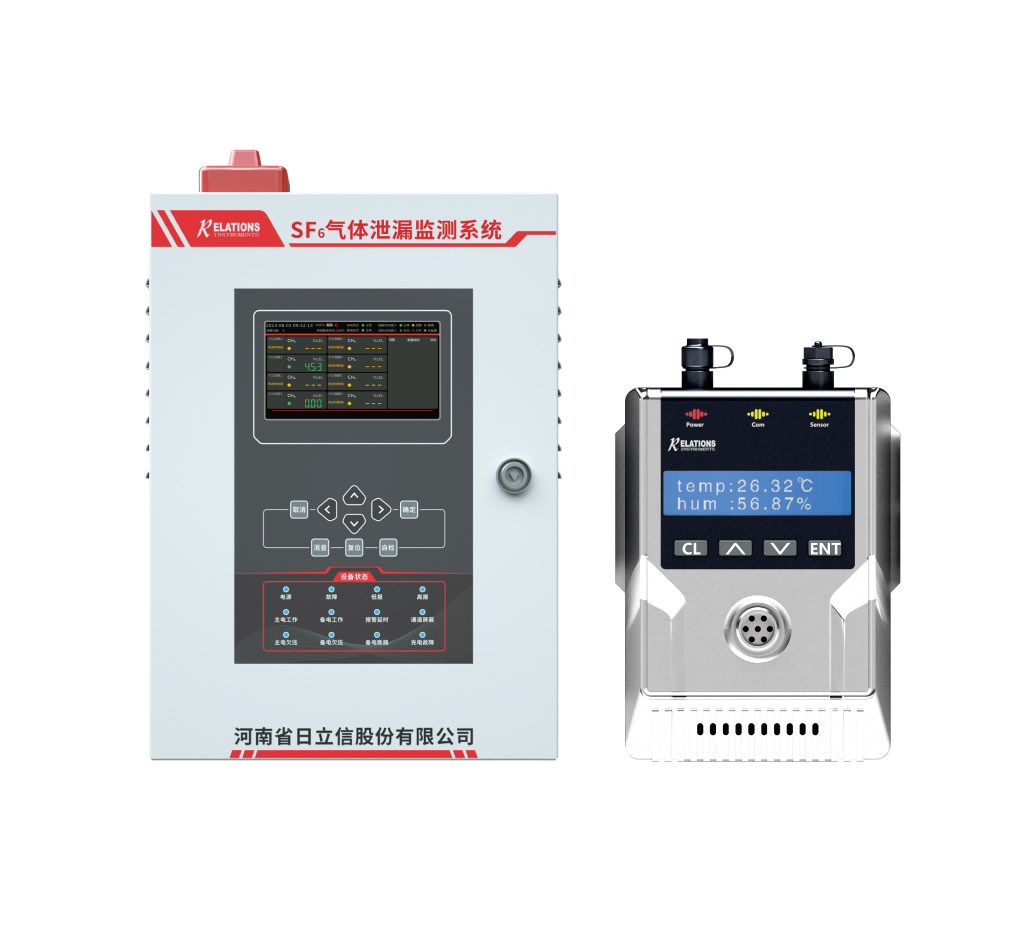

Sulfur Hexafluoride Gas Leak Online Monitoring System

New Products / New Technology

The online monitoring system for sulfur hexafluoride gas leakage transmits real-time measurements of sulfur hexafluoride (SF6), oxygen (O2), and temperature and humidity from the field to the DCS via an RS‑485 bus. When the measured values exceed the preset alarm thresholds, the system activates audible and visual alarms or initiates ventilation equipment. Additionally, the human infrared detection function automatically starts the exhaust fan upon sensing a presence; after a predetermined ventilation period—adjustable in the fan settings—the personnel may enter the work area, thereby ensuring safe production on site.
