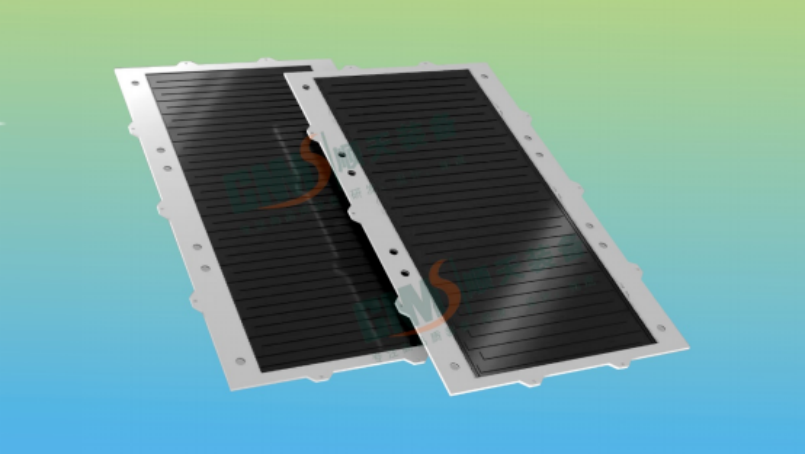

INTEGRATED COMPOSITE GRAPHITE BIPOLAR PLATE

New Products / New Technology

Leveraging years‑long accumulated flow‑battery technologies and core components developed jointly with universities, we have realized a "4‑in‑1" integrated design for flow channel, polar plate, pole frame and cover plate. The risk of liquid leakage is reduced by 20%, and the selling price is 40% lower than comparable products. Based on self‑developed high‑conductivity composite materials, the product delivers a flexural strength of 40 MPa and contact resistance of 5 mΩ·cm @1 MPa. It achieves 10‑15 % weight reduction together with a 5 % increase in energy density. The one‑piece forming process improves production efficiency and yield rate. Standardized mass production enables continuous cost reduction. Widely applicable to generation‑grid side, industrial‑commercial and new‑energy energy‑storage scenarios, the product holds application potential in both flow‑battery energy storage and hydrogen‑energy sectors.

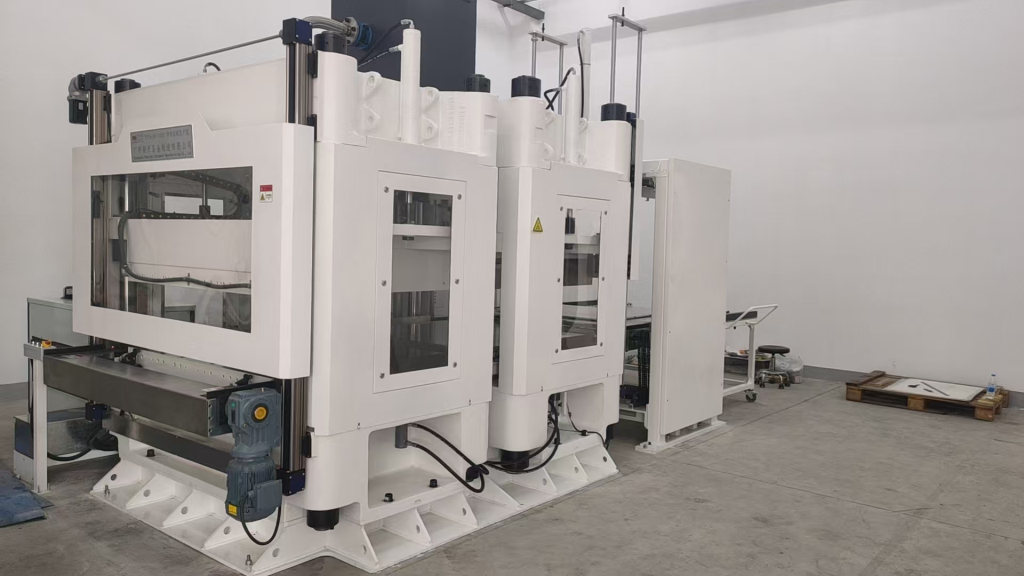

HOT & COLD PRESS FORMING PRODUCTION LINE

New Products / New Technology

The Hot & Cold Press Forming Production Line is a high-precision integrated system by Shuntian Equipment for hot-pressing and cold-forming of new energy core components, applicable to CCM membrane electrode assemblies, MEA membrane electrode assemblies, GDL gas diffusion layers, CCS aerogel, automotive films, flow battery bipolar plates, and composite materials, with one machine serving multiple products.
The equipment features servo control for stable pressure, high efficiency and high yield. It supports both pressure-control and position-control modes with closed-loop monitoring via torque pressure sensors. Multi-stage pressure, multi-stage stroke, slow pressing and multi-stage heating can be freely configured per product requirements, with temperature difference within ±1C. Rapid vacuum evacuation reduces bubble defects and improves forming density.
The Chinese introduction is published in the electronic exhibition preview. Welcome to our booth.

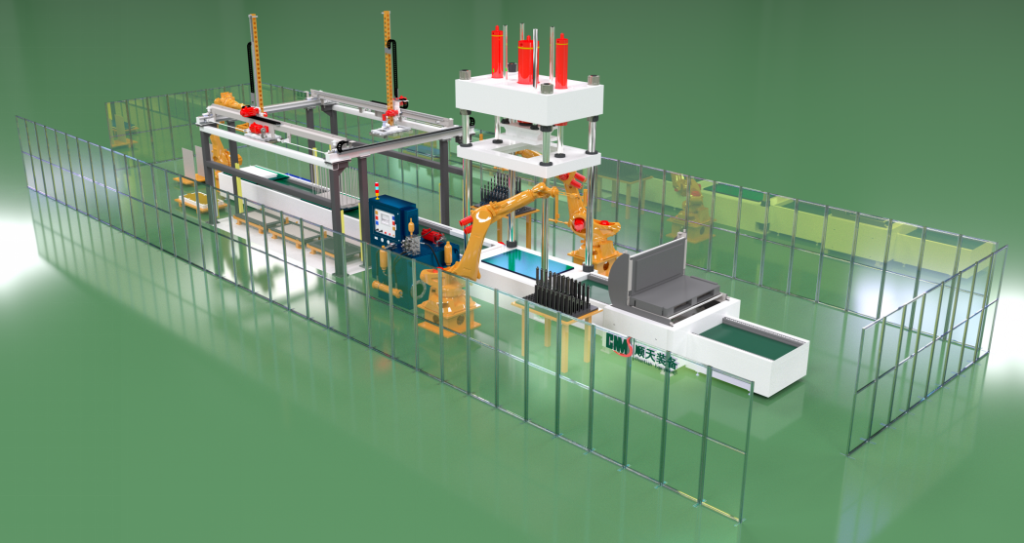

BATTERY STACK ASSEMBLY AND PRESSING LINE

New Products / New Technology

Fuel Cell Stack Stacking and Pressing Assembly Line: Modular and flexible assembly, servo pressing, manual screw tightening, integrated air tightness/insulation testing, CVM/housing installation, and laser marking. Automated MEA/bipolar plate/end plate stacking with barcode scanning, vision alignment, fixtureconstrained servo pressing, and automatic band bending & welding. MES monitors the entire process with full traceability, accommodates multiple stack sizes, and supports rapid capacity expansion.
AllVanadium Flow Battery Assembly Line: Specialized for stack assembly, including pretreatment of bipolar plates (thermal fusion/welding inspection), end plates, insulation plates, current collector plates, membranes, and gaskets, with recipe management. Key equipment: servo hydraulic press, rotary conveyor, lifting device, turnover mechanism, and stacking system. Automatic dispensing, film laminating, stacking, and inspection; CCD vision and leak testing with configurable criteria; test
