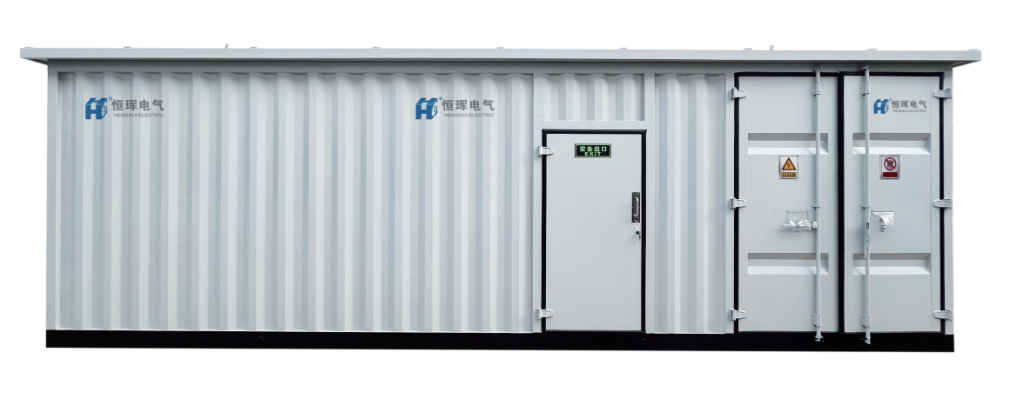

PREFABRICATED CABIN SUBSTATION

he prefabricated cabin substation consists of the prefabricated cabin body, primary and secondary electrical equipment, and auxiliary facilities. Pre-manufacturing, including assembly, wiring, and debugging, is carried out in the factory. The entire cabin is then transported to the construction site, where it can be installed on the foundation. Originating from the core concept of the State Grid's standard distribution-style, it is designed based on the traditional box-type substation and combines the style of a shipping container.Its characteristics areHigh Reliability,Standardized,Modular,Factory-built,Fast Construction,Low Noise,Long Service Life,Aesthetic Appearance.

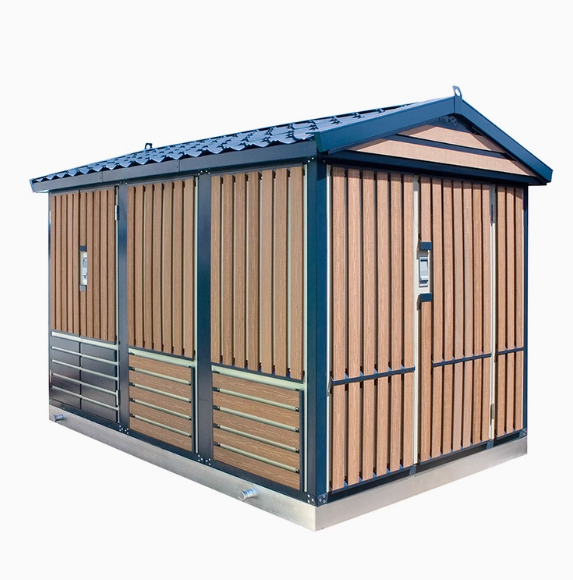

YB -12/0.4 DEDICATED BOX-TYPE SUBSTATION FOR CHARGING PILES

With the increasing number of electric vehicles, more and more charging piles are being used in parking lots, gas stations, and commercial areas. The power distribution process of these charging stations includes two parts: the power transformer reduces the voltage from 10KV to 400V, and from 400V to the charging pile. The most important energy conversion occurs in between.
The YB -12/0.4 dedicated box-type substation for charging piles developed by our company mainly serves to convert the city's 10kV power through the transformer to 400V, providing stable, reliable, and safe power for electric vehicle charging piles.

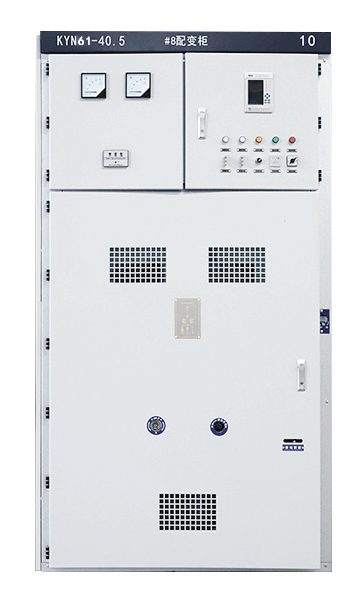

KYN61-40.5 ARMORED METAL-ENCLOSED MOVEABLE AC SWITCHGEAR

The main features of KYN61-40.5 armored metal-enclosed moveable AC switchgear (hereinafter referred to as the switchgear) are that the cabinet is equipped with ZN85-40.5 fully insulated vacuum circuit breaker and spring operating mechanism. The cabinet is assembled by steel plate spraying, which improves the matching accuracy between the cart and the cabinet. The cart is very easy to push and pull out, and has strong interchangeability. It has beautiful appearance, complete solutions, and safe and reliable use.
This product is used for 35kV, 50Hz AC power systems, and is commonly used in power plants and mining enterprises for their power distribution. It is equipped with control, protection, and monitoring functions.
This product complies with the following standards: GB3906 3~35kV AC Metal-Enclosed Switchgear, GB/T11022 Common Specifications for High-Voltage Alternating-Current Switchgear and Controlgear Standards, DUT404 Switchgear and Controlgear Technical Requirements, and IEC60298 AC Metal-Enclosed Switchgear and Controlgear Equipment with Rated Voltage Above 1kV and Up to 52kV.
