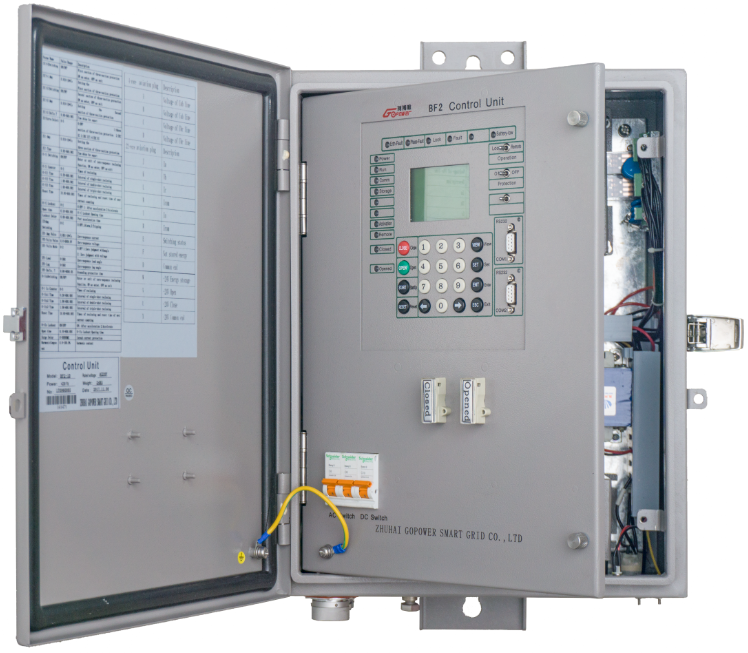

FEEDER TERMINAL UNIT

Feeder terminal unit(FTU BF2) is a new HV switch control device equipped with both the imported DSP high-speed sampling chips and the high-performance ARM chips, and can fast and stably finish the monitoring on the switch. It boasts of such functions as the protection, measuring, controlling, monitoring, communication, remote control and so on and features high integration level, flexible configuration and user-friendly interface, widely applied to the radiant and ring network power supply systems to help the systems identify transient and permanent line faults, eliminate the impact of transient line faults automatically, isolate the permanent fault segments to avoid prolonged power failure in large area, and automatically recover the power supply in fault-free areas, so as to realize the automation of power distribution network in a economical and practical way.

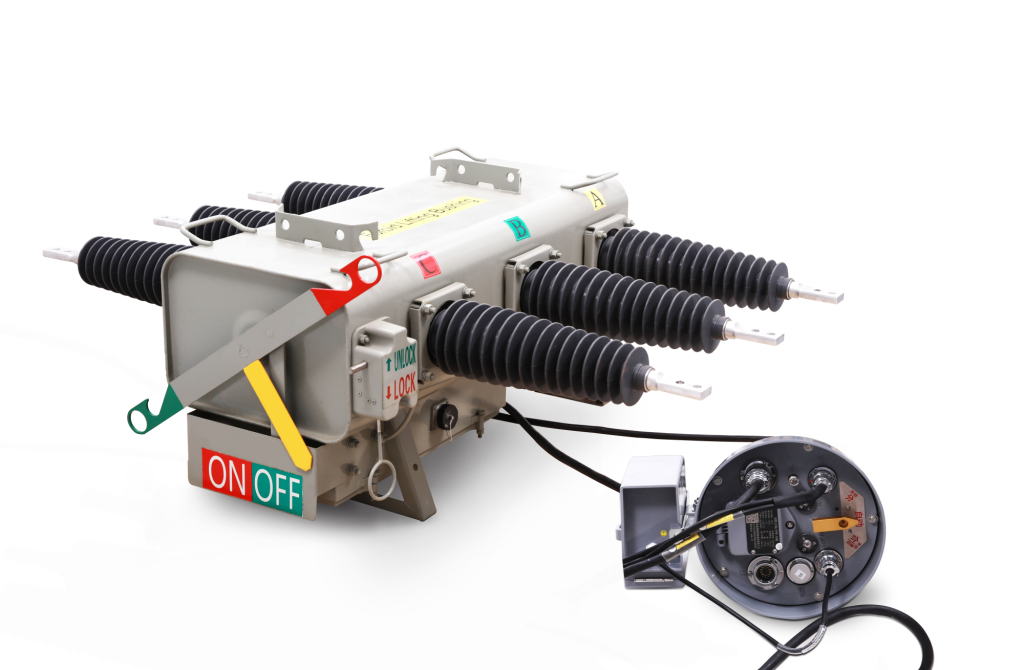

SF6 LOAD BREAK SWITCH

FWX-24/630-20 LBS installed on the pole is suitable for rated voltage 12/24/40.5kV, rated current 630A50/60Hz Distribution network breakingThe load current or overload current in a power system that automatically isolates the faulty sections of the distribution line. Switch with the latest technology electronic controller, manual operation, electric operation and remote operation. The electronic controller is installed in the stainless steel box and can be used under various climatic conditions. In addition, cable and wireless modems can be installed in the box to realize remote monitoring and control. Simple installation and arrangement on the pole is convenient, quick and low construction cost.

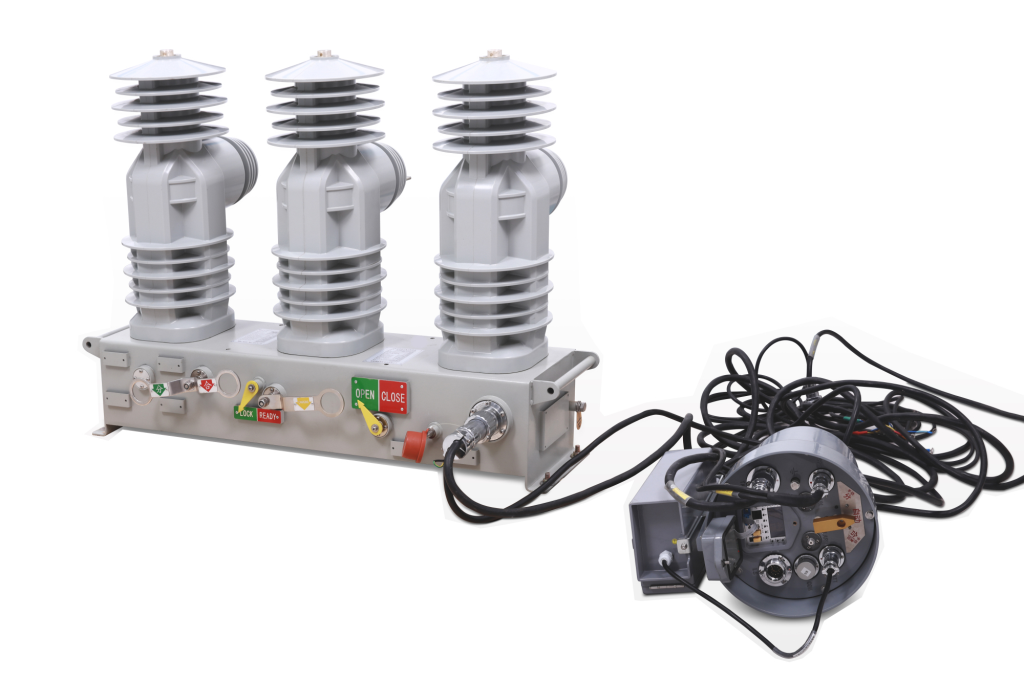

OUTDOOR VACUUM CIRCUIT BREAKER

ZW32 series Breakers are used in distribution systems. Circuit breakers are used to make and break normal and fault currents. Breakers are fully equipped with sensors and a controller to provide a means of protection and control. In case of a line fault, breakers can break and make currents several times, thus avoiding longer network interruptions due to temporary faults. The manufacture, design and testing of the vacuum recloser is based on current standards IEC 62271-100.
