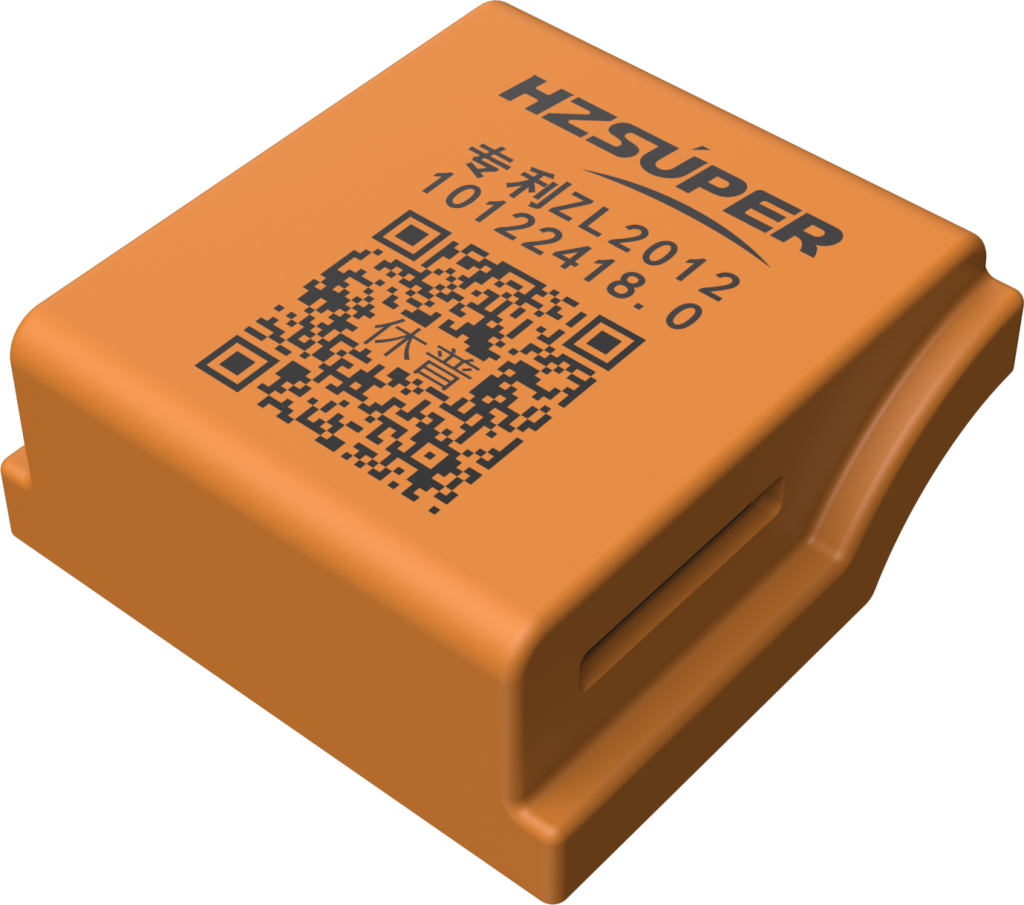

SPS061V3 PASSIVE WIRELESS TEMPERATURE SENSOR

New Products / New Technology

SPS061V3 Self-powered Wireless Temperature Sensor is mainly applied in temperature measurement of electrical junction which inside high and low voltage switchgear. With 11 years of practical application and seven times technical upgrading, the sensor has been in the leading level in comprehensive aspects like product stability, anti-interference ability, practicability, lifetime, volume and so on, successfully applied in thousands of Industrial scene in China.

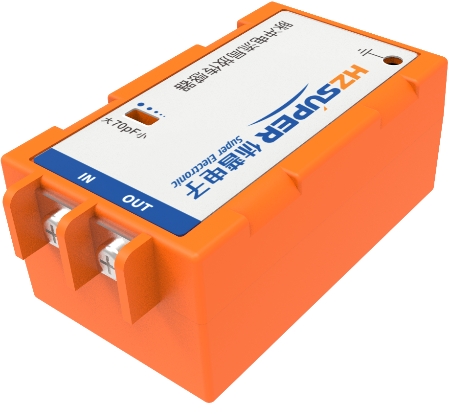

SPS119 PASSIVE WIRELESS PULSE CURRENT PD SENSOR

Based on the pulse current method, we have made improvements and used the insulator-type capacitive sensor of the live display device of the high-voltage switch cabinet for online partial discharge monitoring. Its advantages are as follows: It is equipped with a strong built-in magnet that can be attached to the cabinet wall. Three sensors can be installed on one cabinet, reducing installation costs and wiring. Simultaneously collect, analyze and process single-phase signals. Through hardware algorithms, high-order harmonic interference and other common-mode interference in the power grid are filtered out to achieve precise single-phase monitoring. It does not require external power supply, does not affect the insulation safety distance of the cabinet, does not affect the operation of the live indicator, and transmits data wirelessly.

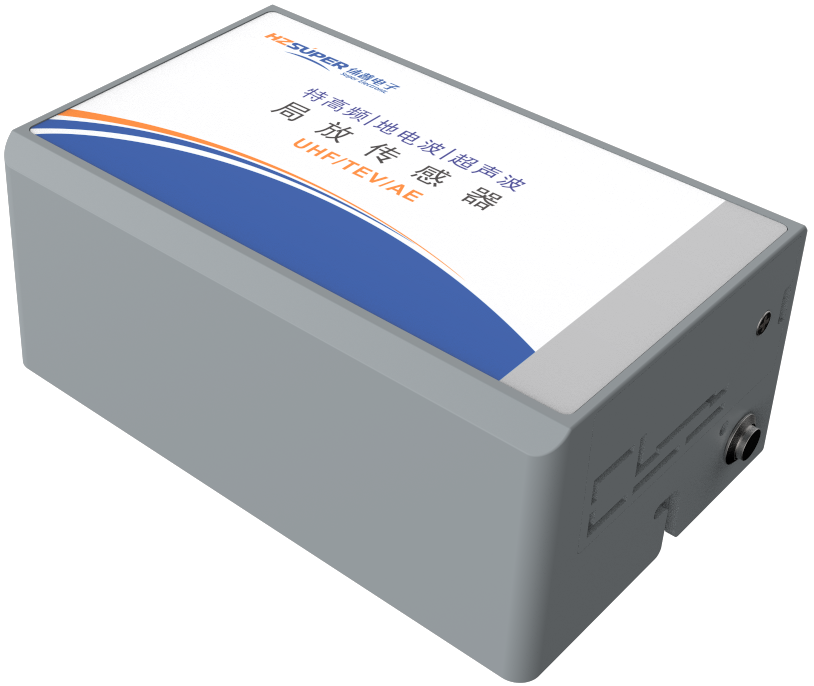

SPD4000WV2 MULTI-IN-ONE PARTIAL DISCHARGE SENSOR

In response to the partial discharge phenomenon at the contact points of electrical equipment, Hangzhou Xiupu has developed a multi-in-one partial discharge sensor that can operate stably for a long time both when the equipment is powered on and in high and low temperature environments. This product features sensitive monitoring, easy installation, free combination and matching of multiple monitoring methods, upload of ultra-high frequency spectra, free selection of multiple power supply methods, and ultrasonic support for extension. Its greatest advantage lies in the integration of ultra-high frequency, ultrasonic transient ground wave three-in-one monitoring technology and temperature and humidity two-in-one technology. The multi-in-one partial discharge sensor is compatible with both external power supply and battery power supply functions, solving the long-term power supply problem of the sensor.
