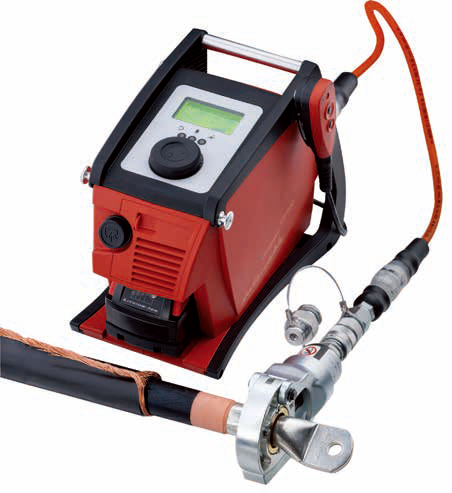

CP700 - COMPACT HYDRAULIC PUMP WITH DISPLAY

Flow range at low pressures 100 bar: 1.2 lit./min.
Flow range at pressures up to 700 bar: 0.2 lit./min.
Operating pressure: ........................................................................... 700 bar (70 MPa)
Power: ......................................................................................................................... 200 W
Battery voltage: ................................................................................................. 18,0 V DC
Battery capacity: ...................................................................................................... 3,0 Ah
Range of use: ........................................ -20C / +55C (integrated cooling system)
Remote control (1.5 m) two buttons and LED indicator
Possibility to attach the remote control to the unit with the integrated magnet
A belt or shoulder strap can be added through a clamp support
Anti-scratch and shock resistant display protection
Current and required pressure visible on display
Error indication
Possibility of reading the curves on the pump and on PC
Possibility of reading all the cycles and error indications by USB
Including software
Tool dimensions: 290 x 190 x 205 mm
Tool weight: 4,5 kg

CABLE STRIPPER FOR PRIMARY INSULATIONFOR MV/HV CABLES WITHOUT SILICON

New Products / New Technology

TECHNICAL CHARACTERISTICS
Designed to remove the primary insulation layer of MV/HV-cables
from 6-45 kV and an insulation thickness up to 15mm and a dimension
up to 1.000mm and 15-58 mm
Light and robust design through the usage of light metals and stainless INOX
Positioning on the cable like a vice system
Spiral and round cut
Optimal sliding properties thanks to the movable wheel system,
no additional silicon required
Axial feed activation/deactivation with 2-speed advance possibility
Replacable blade, made of hardened steel
Adjustable blade depth from 0 to 1,5mm (each klick = 0,1 mm)
Dimensions/Tools: ...................................................................... 220x60x90 mm
Weight/Tool: ................................................................................. 580 gr.

AP130-C2 - BATTERY OPERATED HYDRAULIC CRIMPING TOOL UP TO 130KN

Technical characteristics:
3 years of warranty or 20.000 work cycles
Light and compact structure
C-shaped crimping head, rotates 360
High speed feed with double hydraulic cylinder
Pressure release button with single handed operation (on both sides, for left- and right handed operators)
Fastening ring for shoulder strap
Ergonomic grip for weight balance to ensure an easy and safe operation
Plastic housing, grip and pressure release button, insulating and shock resistant
Powerful LED for working space illumination
Tool dimensions: 331 x 417 x 79 mm
Tool weight: 6,8 kg
