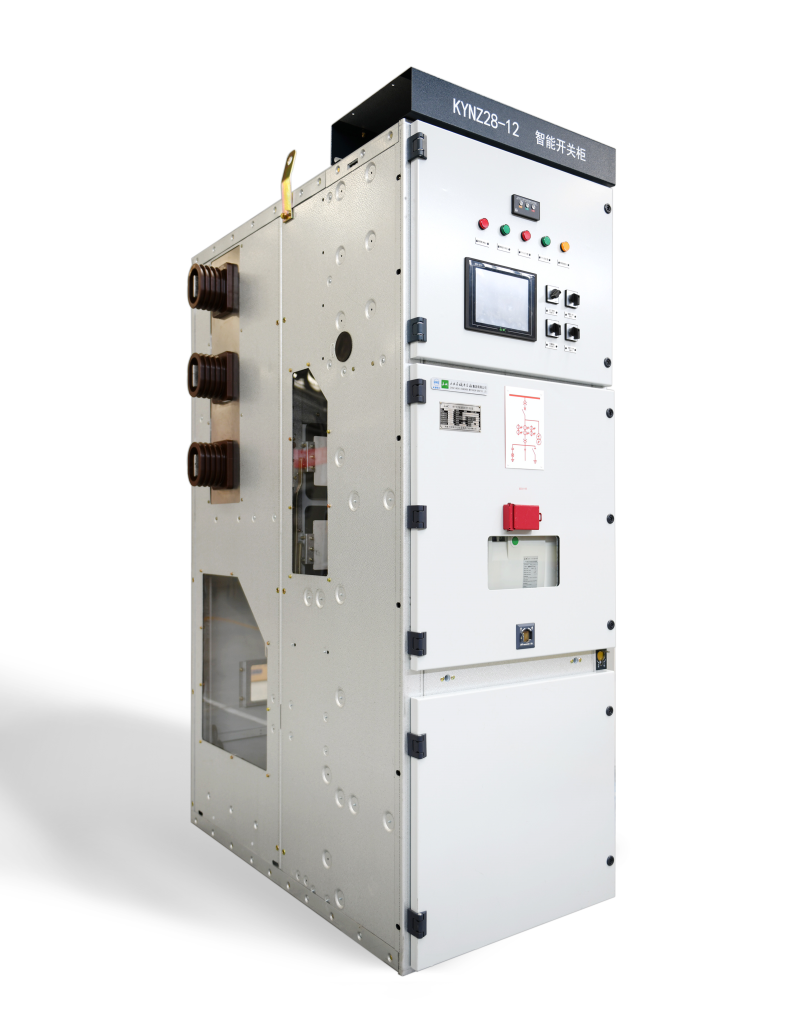

KYNZ28-12 SERIES INTELLIGENT SWITCHGEAR

With the continuous improvement of high-voltage switchgear technology, in order to adapt to the company's industrial park automatic production line, based on the company's years of manufacturing experience in KYN28A switchgear, a new type of structural switchgear has been designed and developed. The switchgear has high technical performance indicators, complete secondary protection, and novel appearance, which can not only adapt to the domestic power market but also meet the development needs of the international power market.

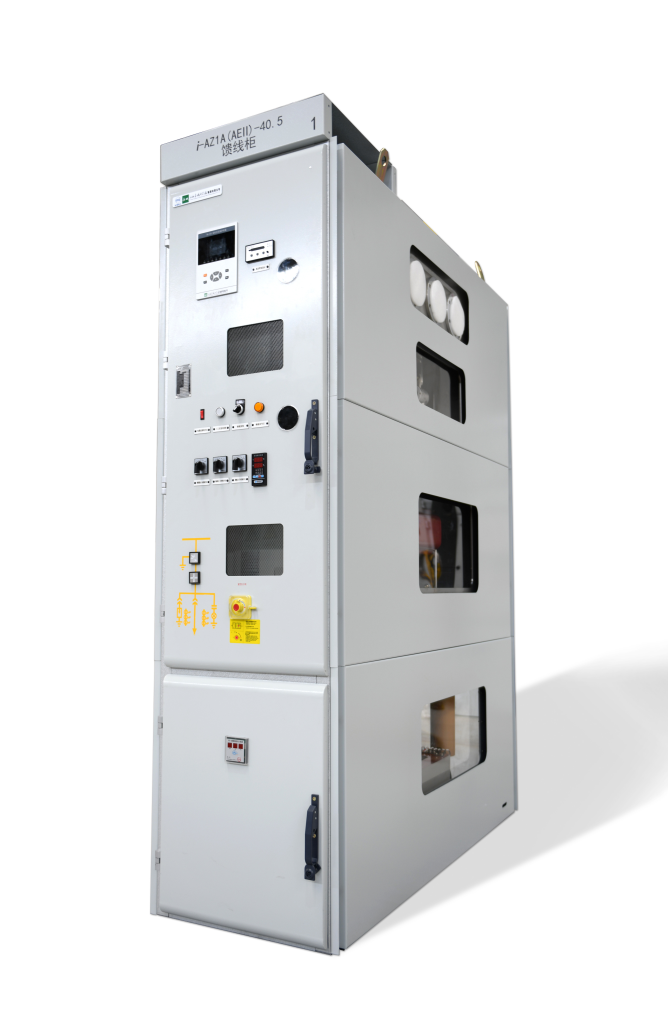

I-AZ1A (AEII) SERIES SF6 GAS INSULATED SWITCHGEAR

The i-AZ1A(AEII) series box type fixed AC metal enclosed switchgear (C-GIS) is a complete set of indoor distribution equipment for three-phase AC 50Hz, 40.5kV and below. Using low-pressure SF6 gas as the insulation medium for switchgear, vacuum arc extinguishing medium, and centralized sealing of medium voltage components such as busbars, circuit breakers, and isolating switches in the box, it is a high-tech product that integrates intelligent control, protection, monitoring, measurement, and communication by comprehensively applying modern insulation technology, disconnection technology, manufacturing technology, sensing technology, and digital technology. Mainly used for receiving and distributing network power, and for controlling, protecting, and monitoring circuits.

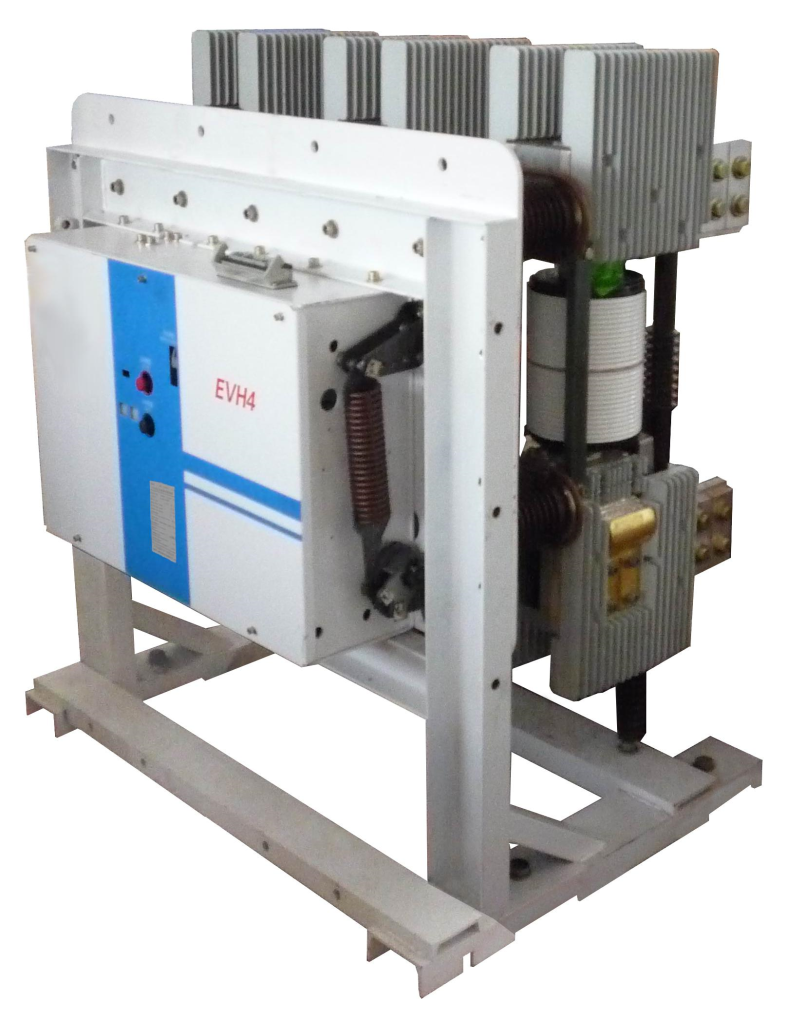

EVH4-15/T6300-80F 户内高压交流发电机断路器

This product is a 15kV and below three-phase AC 50Hz vacuum generator outlet circuit breaker, suitable for use in 12kV systems with an altitude of up to 5000m. It is mainly used in environments such as generators, condensers, main circuits of pumped storage power plants, auxiliary circuits of small and medium-sized power plants, and generator braking circuits. Having high current, high interruptions, high technical performance, and high manufacturing level; The support rod and operating rod are specially made of high-strength vacuum impregnated material. Design a voltage equalizing ring with a uniform electric field between the insulator and the support. Fixed installation method, with air insulation for the main circuit. The circuit breaker is installed at the bottom, which greatly improves the stability and convenience of installation.
