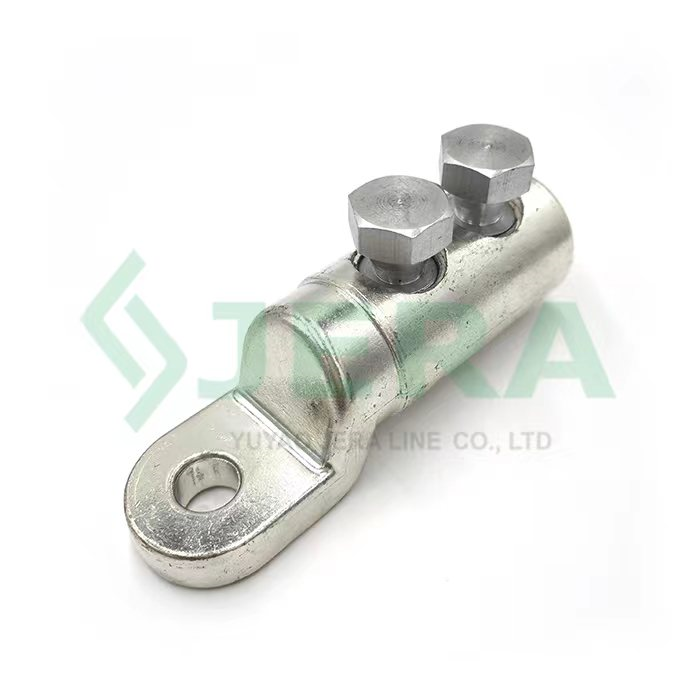

CLBIT-2-70-240 (70-240MM2)

Mechanical cable lug CLBIT-2-70-240 (70-240mm2), it also called mechanical terminal lug, it is used for cable conductors on the low voltage electrical up to 1 KV.
Key Features:
1.Easy operation, only need a regular wrench to tighten the bolts;
2.Tin covered Aluminum material, applied for aluminum and copper cables;
3.Wide range application for electrical cable from 70 to 240mm2;
4.Universal shape of input hole, for solid and standard cables;
5.Manufactured according to the standard: IEC-61238-1-3;
6.Competitive price.
Welcome to visit our website for more information:
https://www.jera-energy.com/pre-insulated-cable-lug-cpta-2-70-240/
For B2B inquires email: info@jera-energy.com
Watch more via YouTube: https://youtu.be/qyX1-IUOQuY

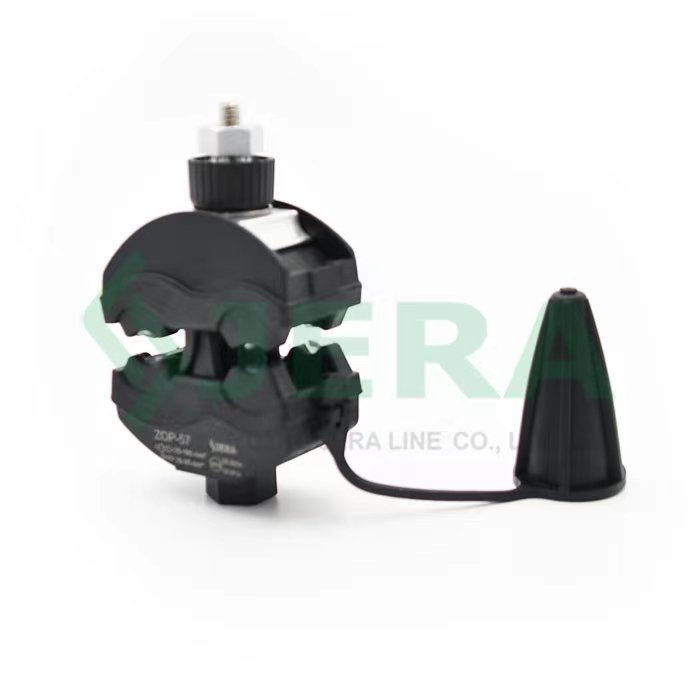

ZOP-57 (25-150/25-95MM2)

Insulation piercing connector, ZOP-57 (25-150/25-95mm2), also called insulation tap connector, it is used in low voltage overhead line ABC power cable distributions and solar photovoltaic PV cable connecting.
Key Features:
1.Convenient to install without cutting the jacket;
2.Stainless steel bolt&washer, rust and corrosion prevention;
3.UV-resistant and waterproof materials;
4.Outdoor usage for construction applications like buildings, street lights;
5.Contact teeth: aluminium tin covered for bimetallic conductors;
6.Captive and flexible end caps;
7.Manufacture according to the standard: EN50483-4:2009 and NFC-33020;
8.Competitive price.
Jera Line is the factory, from China Ningbo, which produces the power connectors for low voltage, medium voltage cables.

Our advantages:
Direct factory, produces 95% of soliton on-site.
2. 5 years product warranty.
3. Products comply to NFC 33020, EN 50483:4 type standards
4. Interesting payment terms
5. Competitive price, caused by our scale production facility.
6. OEM branding and customization, with us you can develop your own brand.
7. Global experience, our clients are more than 30 countries.

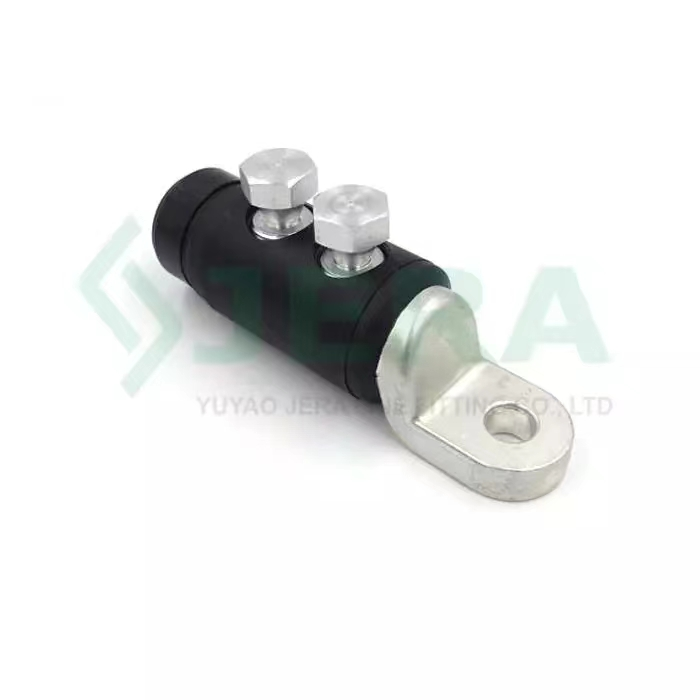

ICL-185-400

INSULATED BOLTED TERMINAL LUG FOR 400 sqm, ICL-185-400, other called Pre-insulated mechanical terminal lug, is used for termination of power cables started from 185 sqm to 400 sqm. The terminal lug ICL-185-400 is applied with the following cables:
Low voltage power cable, overhead and underground.
Solar photovoltaic bus cables in PV combiner boxes.
The ICL type of mechanical bolted cable lugs have sufficient key features:
1.Rapid waterproof insulation without heat or cold shrinks tubes.
2.Spearhead bolts installation with precise torque, no compression tools.
3.Wide range application 16 to 400 mm2.
4.Suitable for aluminum and copper cables.
5.Manufactured according to the standard: EN 50483 & IEC 61238-1.
